MV SOLAR SINGLE CORE XLPE ATA MDPE 18/30(36)kV AD7 - 50mm² to 800mm²

Description

This is a Medium Voltage (MV) armoured power cable used to transmit high-voltage electricity. It is primarily used in renewable energy projects, such as solar parks and wind farms, to route generated power from inverters and collection stations into the wider electrical grid. The cable is manufactured generally to IEC 60502-2 with aluminium conductor to IEC 60228 Class 2.

Suitable for external installation, these cables can be installed on cable trays, within conduits or fixed to walls.They are suitable for burial in ducts.
The MDPE outer sheath is UV Resistant and water resistant to AD7.

Key Features

•
  Voltage Rating 18/30 (36)kV
•
  Minimum Bending Radius 15 x Overall Diameter
•
  Temperature Limits Temperature Range: -15°C to +90°C

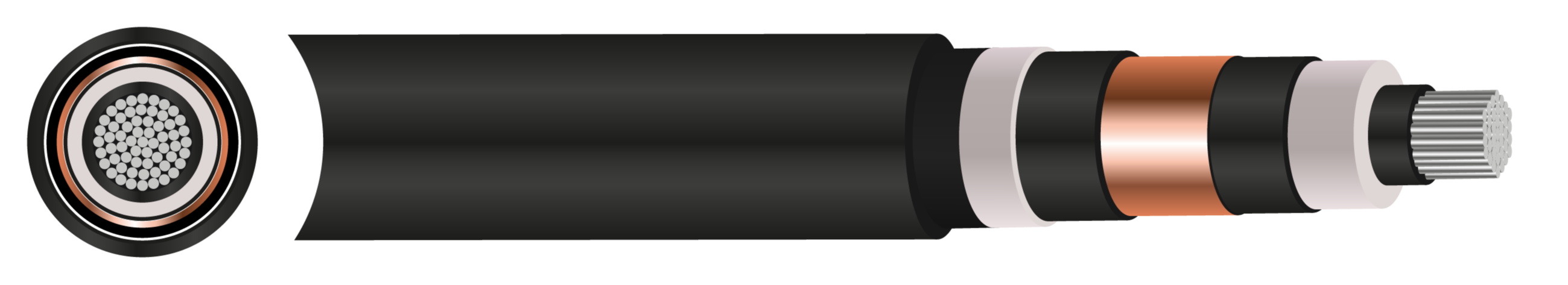

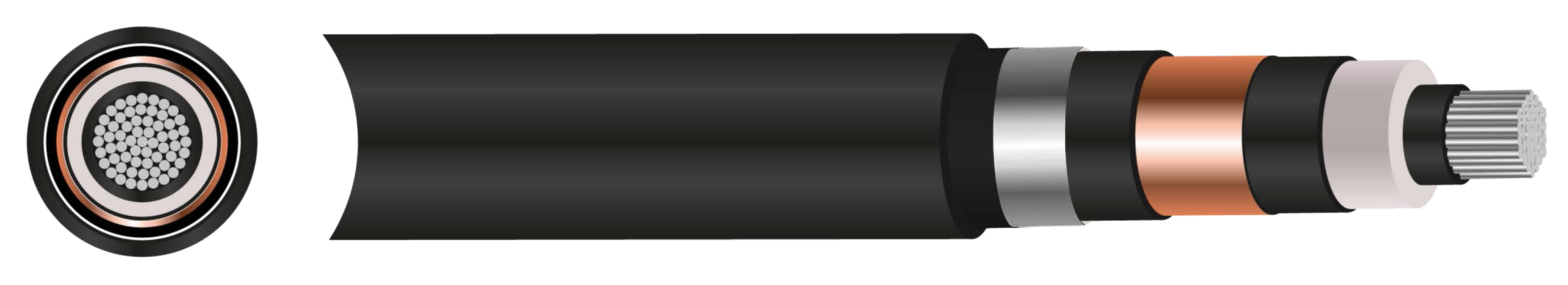

Construction

• Conductor: Class 2 Stranded Circular Compacted Aluminium Conductor
• Inner Semi-Conductor: Bonded Semi-Conductive Material
• Insulation: Cross Linked polyethylene (XLPE)
• Outer Semi Conductor: Extruded Outer Semi Conductor (Strippable Type)
• Screen: Copper Tape Screen (CTS)
• Bedding: Polyvinyl Chloride (PVC)
• Armour: Aluminium Tape Armour (ATA)
• Sheath: Polyvinyl Chloride (PVC)
• Outer Sheath: Medium Density Polyethylene (MDPE)

Standards

• IEC 60502-2
• BS EN/IEC 60228
