MV SOLAR SINGLE CORE XLPE AWA MDPE 18/30(36)kV AD7 - 50mm² to 800mm²

Description

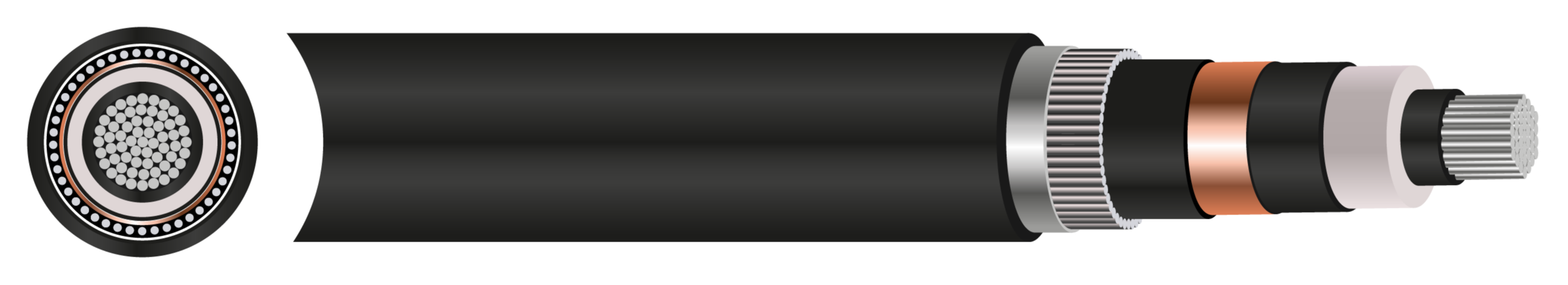

This is a Medium Voltage (MV) armoured power cable used to transmit high-voltage electricity. It is primarily used in renewable energy projects, such as solar parks and wind farms, to route generated power from inverters and collection stations into the wider electrical grid. This 18/30(36)kV cable features extruded inner and outer semi-conductive layers, copper tape screening, PVC bedding and aluminium wire armour for mechanical protection. The MDPE outer sheath provides durability for external installation.

Suitable for fixed installation on cable trays, within conduits, or directly buried in ducts. The cable is manufactured generally to IEC 60502-2. Outer sheath is UV resistant and water resistant to AD7.

Key Features

•
  Voltage Rating 18/30 (36)kV
•
  Minimum Bending Radius 15 x Overall Diameter
•
  Temperature Limits Maximum operating temperature: +90°C

Construction

• Conductor: Class 2 Stranded Circular Compacted Aluminium Conductor
• Inner Semi-Conductor: Bonded Semi-Conductive Material
• Insulation: Cross Linked polyethylene (XLPE)
• Outer Semi Conductor: Extruded Outer Semi Conductor (Strippable Type)
• Screen: Copper Tape Screen (CTS)
• Bedding: Polyvinyl Chloride (PVC)
• Armour: Aluminium Wire Armour (AWA)
• Tape Separator: Binder tape
• Outer Sheath: Medium Density Polyethylene (MDPE)
• Sheath Colour: Black

Standards

• IEC 60502-2
• BS EN/IEC 60228
