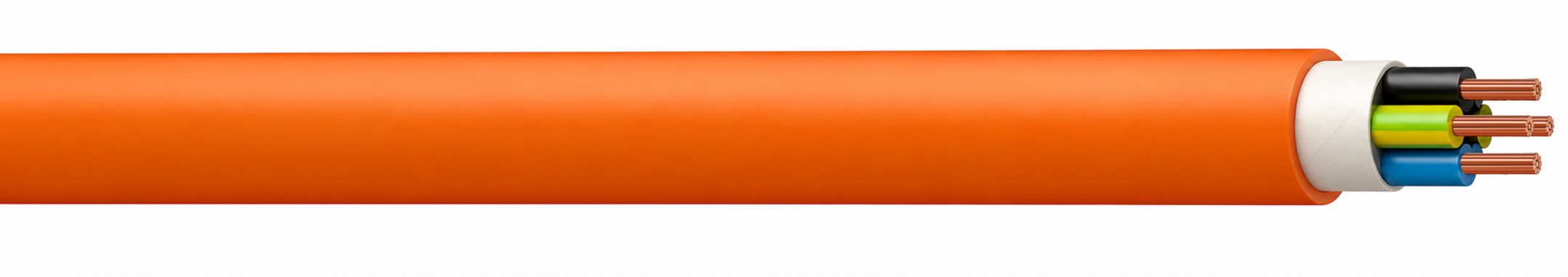

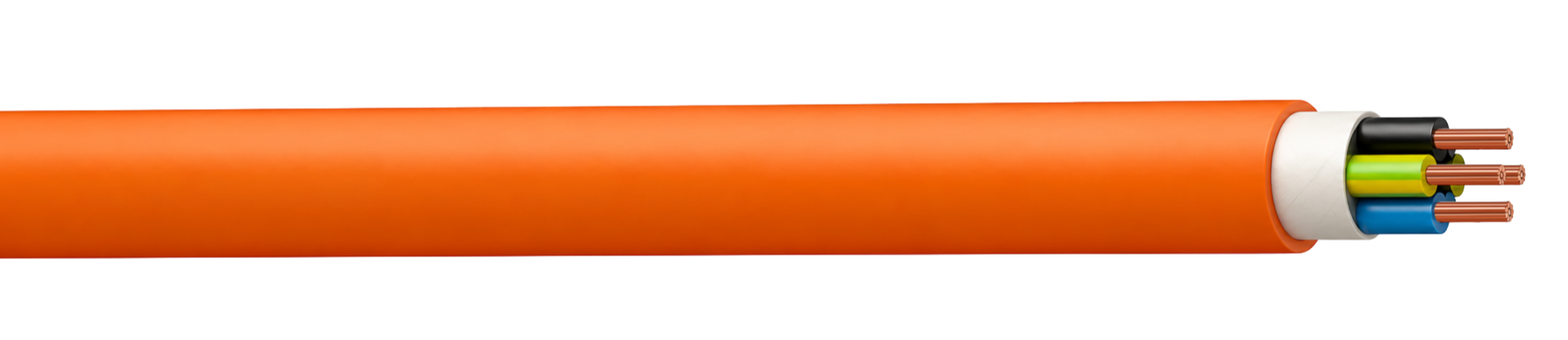

Nexans - N2XHFR Low Voltage Fire Resistant Multi Core OR - CU, MGT, XLPE, LSZH - 1.5mm² to 400mm²

Description

This Nexans N2XHFR multicore cable is a fire-resistant, halogen-free power cable supplied for fixed electrical installations where circuit integrity and reduced smoke and corrosive gas emissions are required in the event of fire. The cable features stranded copper Class 2 conductors, mica tape, XLPE insulation and a low smoke zero halogen (LSZH) outer sheath.

Suitable for installation in commercial, industrial and public buildings, including cable trays, conduits and other fixed installation systems. Available in a range of multicore configurations, N2XHFR provides reliable power transmission while maintaining circuit integrity under fire conditions and is suitable for applications where fire resistance, reduced smoke and halogen-free performance are required.

Key Features

•
  Voltage Rating 600/1000 Volts
•
  Minimum Bending Radius 8 x Overall Diameter
•
  Flame Retardancy IEC 60332-3-24 (Cat C)
•
  Temperature Limits Temperature Range: -20°C to +90°C

Construction

• Conductor: Class 2 Copper Conductor
• Protective Tape: Mica Glass Tape (MGT) Layer
• Insulation: Cross Linked polyethylene (XLPE)
• Outer Sheath: Low Smoke Zero Halogen (LSZH)
• Sheath Colour: Orange

Standards

• IEC 60502
• IEC 60228
• IEC 60754-1
• IEC 61034-2
• ISO 4892-2
• IEC 60331-21
• IEC 60332-3-24 (Cat C)

Core Colours
