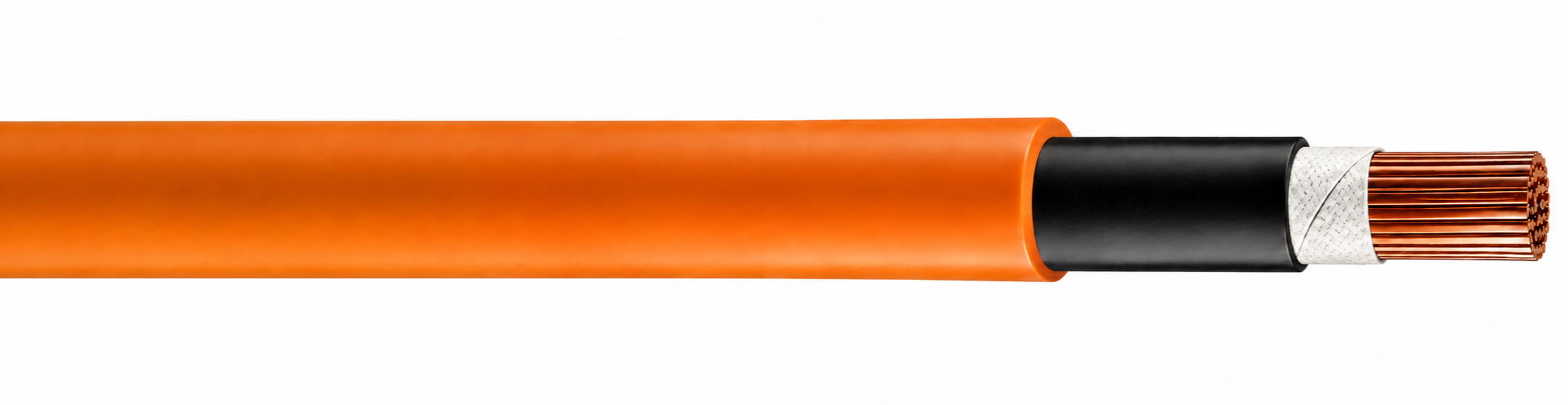

Nexans - N2XHFR Low Voltage Fire Resistant Single Core OR - CU, MGT, XLPE, LSZH - 4mm² to 630mm²

Description

Nexans N2XHFR is a fire-resistant, halogen-free power cable supplied for fixed electrical installations where circuit integrity and reduced smoke and corrosive gas emissions are required in the event of fire. The cable features a stranded copper conductor, mica glass tape, XLPE insulation and a low smoke zero halogen (LSZH) outer sheath.

Suitable for installation in commercial, industrial and public buildings, including cable trays, conduits and other fixed installation systems. N2XHFR provides reliable power transmission while maintaining circuit integrity under fire conditions and is suitable for applications where fire resistance and reduced smoke and halogen-free performance are required.

Key Features

•
  Voltage Rating 600/1000 Volts
•
  Minimum Bending Radius 8 x Overall Diameter
•
  Flame Retardancy IEC 60332-3-24 (Cat C)
•
  Temperature Limits Temperature Range: -20°C to +90°C

Construction

• Conductor: Class 2 Copper Conductor
• Protective Tape: Mica Glass Tape (MGT) Layer
• Insulation: Cross Linked polyethylene (XLPE)
• Outer Sheath: Low Smoke Zero Halogen (LSZH)
• Sheath Colour: Orange

Standards

• IEC 60754-1
• IEC 61034-2
• ISO 4892-2
• BS6387
• IEC 60332-3-24 (Cat C)
• IEC 60502
• IEC 60228
