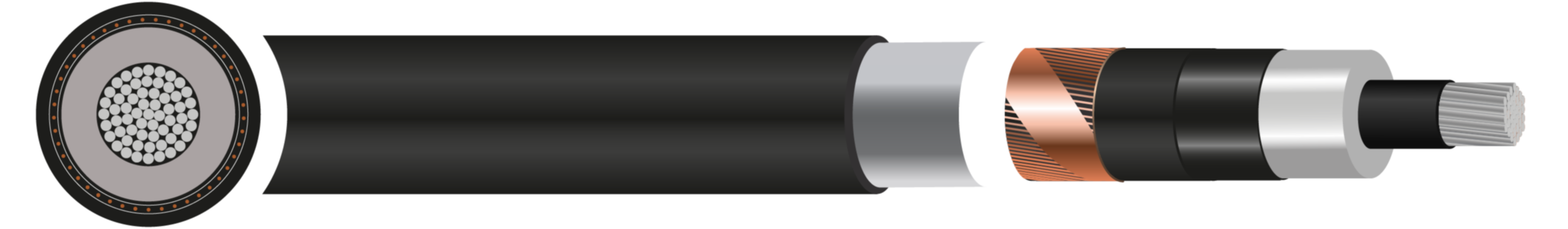

Nexans - NA2XS(FL)2Y XLPE MDPE 8.7/15 (17.5)kV Cable - 50mm² to 1000mm²

Description

Medium voltage power cables with an aluminium conductor, designed for use in electrical distribution networks. NA2XS(FL)2Y cable from Nexans is widely used across the renewable energy and data centre sectors and is suitable for external installations.

The cable can be installed on cable trays, within conduits, fixed to walls or buried in ducts. It features two longitudinal water-blocking layers and a radial water-blocking aluminium tape bonded to a UV-resistant MDPE outer sheath, providing additional protection against moisture and demanding environmental conditions.

Key Features

•
  Voltage Rating 8.7/15 (18) kV
•
  Minimum Bending Radius 15 x Overall Diameter
•
  Flame Retardancy BS EN/IEC 60332-1-2
•
  Temperature Limits Ambient Temperature: -20 to +70°C
  Maximum conductor operating temperature: +90°C

Construction

• Conductor: Class 2 Stranded Aluminium Conductor
• Conductor Screen: Semi-Conductive material
• Insulation: Cross Linked polyethylene (XLPE)
• Insulation Screen: Semi-Conductive XLPE
• Longditudinal Waterblocking: Swellable tapes
• Metallic Screen: Copper Wires plus Copper tape
• Tape: Longditudinal Water Blocking Tape
• Radial Water Blocking: Aluminium/Polyester (AL/PET) tape bonded to sheath
• Outer Sheath: Medium Density Polyethylene (MDPE)
• Sheath Colour: Black

Standards

• BS EN 60332-1-2
• UV Resistant: ISO 4892-3
• IEC 60228
• IEC 60502-2
