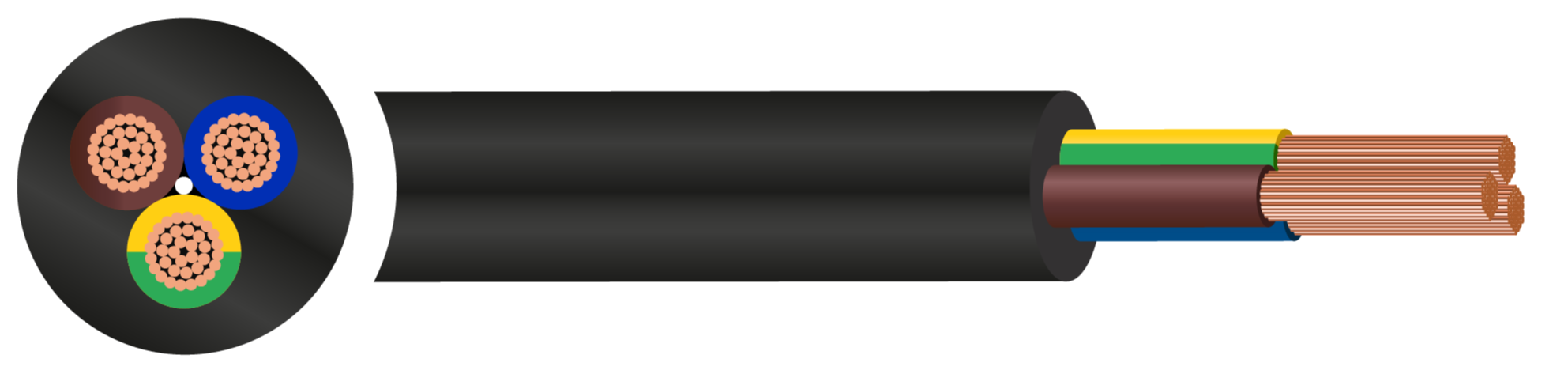

Ordinary Duty V75 PVC Flexible Cord 250/400V Cable - 0.50mm² to 4mm²

Description

V75 PVC Ordinary Duty Flexible Cords are designed as medium-stress electrical supply cables rated at 250/400V, making them suitable for a broader range of domestic, commercial, and light industrial applications. This range features plain annealed flexible stranded copper conductors, insulated with a V-75 Polyvinyl Chloride (PVC) compound and protected by a robust 4V-75 PVC outer sheath. Engineered to handle continuous operating temperatures up to 75°C, these cables are manufactured in both flat and round configurations. The range fully complies with the structural requirements of AS/NZS 3191 and AS/NZS 1125 standards, making them an ideal choice for wiring high-use appliances like washing machines and dishwashers, as well as serving as extension leads in conductor sizes of 1.0mm² and above.

These cables are suited for installation in internal dry or damp environments where they may be subjected to standard mechanical stress and normal physical handling. Due to their ordinary-duty construction, they offer a higher degree of protection than light-duty variants, though they are still not advised for unprotected outdoor use or heavy industrial processing zones. The flexible PVC outer sheath is intended to withstand regular bending and movement but must not be positioned where it will encounter severe abrasion, crushing forces, or sustained weathering. For environments prone to extreme mechanical risks or permanent outdoor exposure, alternative heavy-duty or rubber-sheathed cable variants should be specified instead.

For safe installation, the cable must be handled carefully to prevent tight kinks, maintaining a minimum bending radius of six times the overall cable diameter during flexing. Installers should always use appropriate protective bushings or cord grip fittings when feeding the cable through enclosures or equipment chassis to eliminate any potential for structural chafing. As these are designated as flexible cords, standard electrical safety regulations require that they only be used to connect temporary or portable equipment and must never be utilized as a permanent substitute for the fixed wiring within a building structure.

Key Features

•
  Voltage Rating 250/400 Volts
•
  Minimum Bending Radius 6 x overall diameter
•
  Temperature Limits Maximum operating temperature: +75°C

Construction

• Conductor: Stranded copper conductor
• Insulation: Polyvinyl Chloride (PVC)
• Outer Sheath: Polyvinyl Chloride (PVC)
• Sheath Colour: Black, Grey, White or Orange

Standards

• AS/NZS 1125
• AS/NZS 3191

Core Colours
