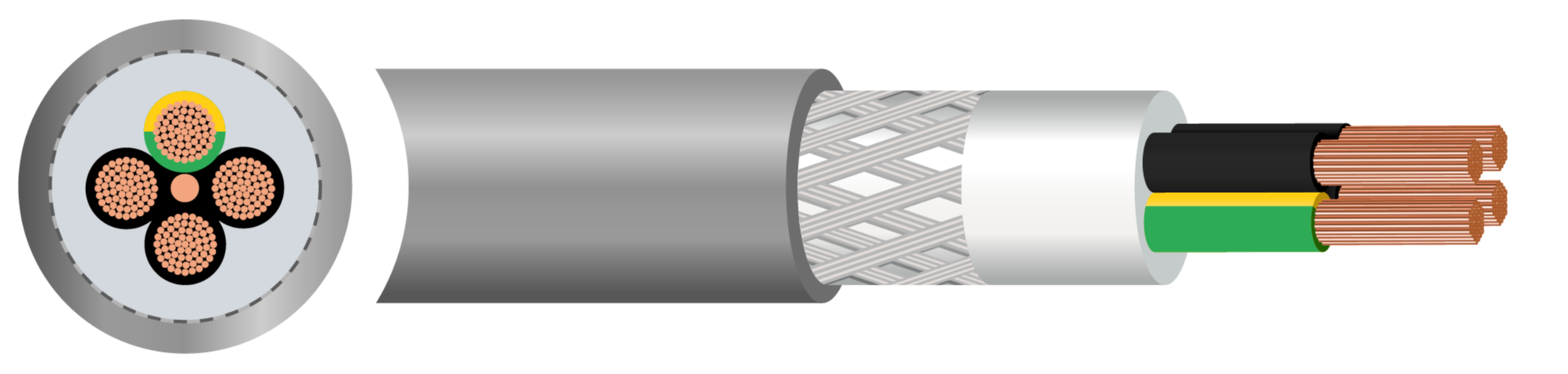

Powerchain CY Cable - 0.5mm² to 6mm²

Description

Powerchain CY cables are high-flexibility, multi-core control cables designed for continuous motion within standard drag chains and automation systems. The "CY" designation signifies a specific construction: the "C" refers to a tinned copper wire braid (TCWB) screen, and the "Y" indicates the use of Polyvinyl Chloride (PVC) for both the insulation and the outer sheath. This configuration ensures critical electromagnetic compatibility (EMC), suppressing external electrical interference and protecting signal integrity in environments where data or control lines run in close proximity to power lines.

Powerchain CY cables are engineered to withstand the dynamic stresses of automated machinery, these cables typically employ Class 6 extra-fine-wire copper conductors, allowing for consistent flexing across a single axis without the risk of conductor fatigue. While the PVC jacket provides a versatile and cost-effective solution for dry or moist indoor environments, it is generally less resistant to extreme mechanical abrasion or aggressive chemicals than the Polyurethane (PUR) sheathing found in "CP" variants. They are rated for a standard operating voltage of 300/500V and typically maintain a minimum bending radius of 8 times the overall diameter when flexed.

In industrial settings, Powerchain CY cables are primarily utilised for signal transmission, measurement, and regulation in CNC machines, robotics, and conveyor control panels. Their primary role is to facilitate interference-free data and power delivery to moving components, such as sensors and small motors, where precision and reliability are paramount. Because they are designed for standard industrial use, they are often the preferred choice for indoor production lines where extreme mechanical protection (like steel braiding) is secondary to signal protection as provided by the braiding.

Key Features

•
  Voltage Rating 300/500 Volts
•
  Minimum Bending Radius Fixed: 4 x overall diameter
  Flexing: 8 x overall diameter
•
  Flame Retardancy BS EN/IEC 60332-1
•
  Temperature Limits Fixed: -40°C to +70°C
  Flexing: -5°C to +70°C

Construction

• Conductor: Class 6 extra flexible copper
• Insulation: Polyvinyl Chloride (PVC)
• Bedding: Polyvinyl Chloride (PVC)
• Braiding: Tinned Copper Wire Braiding (TCWB)
• Outer Sheath: Polyvinyl Chloride (PVC)
• Sheath Colour: Grey

Standards

• BS EN/IEC 60332-1
• VDE 0482-332-1-2
• BS EN/IEC 60228

Core Colours
