XHIV Cable

Description

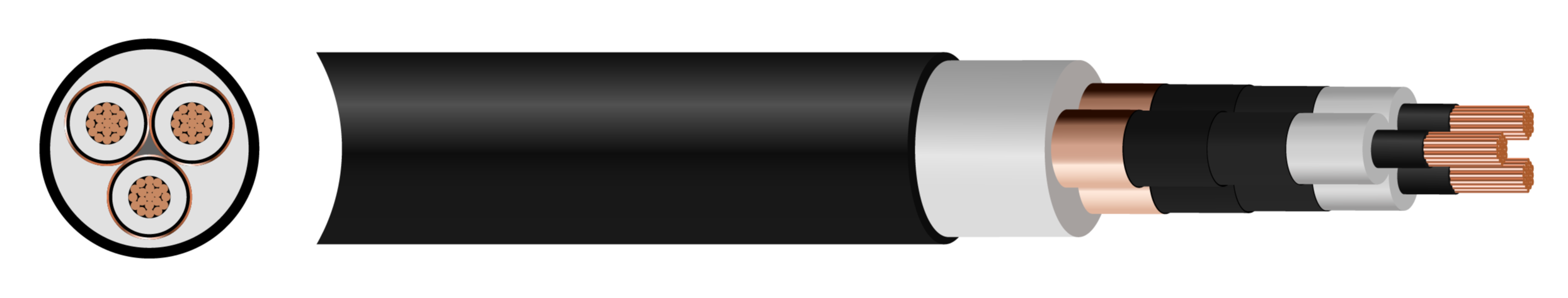

XHIV cable is a medium-voltage power transmission and distribution cable featuring stranded copper conductors, cross-linked polyethylene insulation, a copper tape metallic screen, and a flame-retardant polyvinyl chloride outer sheath. It is primarily designed to meet Portuguese utility distribution grid for fixed installations in indoor or outdoor environments, and it is fully suitable for direct burial in the ground or placement inside cable ducts.

These medium-voltage cables are manufactured in strict accordance with international standards including IEC 60502-2 for power cables, IEC 60228 for conductor specifications, and HD620 standards, while also complying with RoHS and REACH environmental directives. They typically support rated voltage classifications spanning from 3.6/6kV up to 18/30kV, supporting a maximum continuous conductor operating temperature of 90 degrees Celsius and a short-circuit threshold of 250 degrees Celsius.

Basic installation guidelines require maintaining a minimum bending radius of twenty times the overall cable diameter during active pulling and installation, which reduces to fifteen times the diameter once fixed in place.

Key Features

•
  Voltage Rating 3.6/6 (7.2)kV
  6.35/11 (12)kV
  8.7/15 (17.5)kV
  12/20 (24)kV
  18/30 (36)kV
•
  Minimum Bending Radius 15 x Overall Diameter
•
  Flame Retardancy BS EN/IEC 60332-1-2
•
  Temperature Limits Temperature Range: -20°C to +90°C

Construction

• Conductor: Stranded copper conductor
• Conductor Screen: Semi conductive XLPE
• Insulation: Cross Linked polyethylene (XLPE)
• Insulation Screen: Semi conductive XLPE
• Metallic Screen: Individual copper tape screen
• Outer Sheath: Polyvinyl Chloride (PVC)
• Sheath Colour: Black

Standards

• IEC 60502-2
• BS EN/IEC 60332-1-2
• BS EN/IEC 60228
