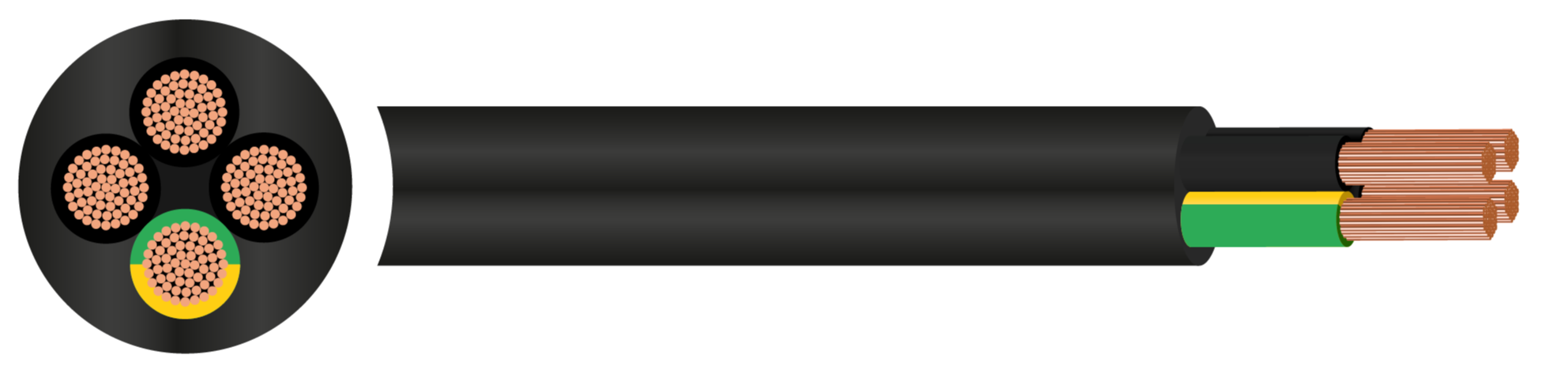

YSLY 0.6/1kV Cable - 0.75mm² to 70mm²

Description

A variation on YY cables, YSLY cables are versatile unshielded PVC control cables primarily used as interconnecting links for measuring, controlling, and regulating industrial equipment. These cables are designed for environments requiring high flexibility and reliability under light to medium mechanical stress. They are widely implemented in industrial automation for assembly and production lines, conveyor systems, and machine tool manufacturing. In mechanical engineering, they are employed for instrumentation and control equipment, tooling machinery, and plant construction, as well as for air-conditioning systems and data processing centres.

These cables are ideally suited for installation in dry, damp, and wet indoor locations, though standard variants are generally not suitable for outdoor use without specific ultraviolet protection. The technical profile of a YSLY cable features a fine-stranded bare copper conductor that allows for high flexibility during free movement without tensile load. While standard versions are typically rated for three hundred to five hundred volts, high-voltage variants reaching zero point six to one kilovolt are available for more demanding power and control requirements. The PVC sheathing also provides essential resistance to mineral oils, common chemicals, and grease.

Various configurations are available to meet specific wiring needs, such as versions that include a green and yellow earth core or those with numbered black cores only. For applications in areas with high concentrations of people where fire safety is a priority, low smoke zero halogen versions are also utilised. This combination of mechanical durability and chemical resistance makes YSLY cables a standard choice for electronic equipment connections and IT systems across various industrial sectors.

Key Features

•
  Voltage Rating 600/1000 Volts
•
  Minimum Bending Radius Fixed: 4 x overall diameter
  Flexing: 8 x overall diameter
•
  Flame Retardancy BS EN/IEC 60332-1-2
•
  Temperature Limits Fixed: -20°C to +70°C
  Flexing: -5°C to +70°C

Construction

• Conductor: Class 5 flexible stranded copper conductor
• Insulation: Polyvinyl Chloride (PVC)
• Outer Sheath: Special Polyvinyl Chloride Compound (PVC)
• Sheath Colour: Black

Standards

• BS EN/IEC 60811-404
• BS EN/IEC 60332-1-2
• BS EN/IEC 60228

Core Colours
