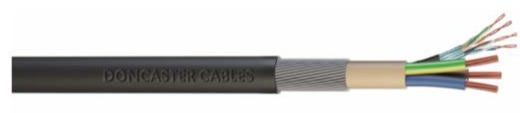

EV Ultra Cat5 Cable

EV Ultra Cat5 Cable

Description

EV Ultra from Doncaster Cables - This cable is designed for use in the installation of electric vehicle charge points. The cable incorporates power conductors and an enhanced Cat 5 screened data cable, encapsulated in a double-sheathed design for extra protection. Whilst designed for use in electric vehicle charge points, the cable is also suitable for other installations where power and data is required. Also available with two Cat5e data cables to satisfy various installations. These cables are designed to be installed in air, clipped to surface, on cable tray/ladder work and embedded in concrete. The cables can be laid direct in the ground providing that suitable mechanical protection is in place.

Key Features
  • Minimum Bending Radius
    Minimum Bending Radius As Per Manufacturers Datasheet
  • Temperature Limits
    Temperature Limits Temperature Range: -15°C to + 90°C
Construction
  • Conductor: Plain Annealed Copper Class 2 Stranded to BS EN 60228
  • Insulation: Thermosetting XLPE Type GP8 to BS 7655-1.3
  • Bedding: CarbonTek®
  • Sheath: CarbonTek®
  • Armour: Galvanised Steel Wire Armour (SWA)
Standards
  • BS EN 60228

Core Colours

3 Core EV-Ultra - Green Yellow Blue Brown Black
5 Core EV-Ultra - Green Yellow Blue Brown Black Grey
