EVA LSZH Torsion Resistant 1.8/3kV Turbine Cable

EVA LSZH Torsion Resistant 1.8/3kV Turbine Cable

Description

3kV LSZH power cable. Specifically designed for wind turbines, for transmitting power between turbine generator and the  transformer at the base of the tower. The cable is manufactured to meet the torsional stresses associated with wind turbines.

Key Features
  • Torsion Resistance
    Torsion Resistance ±180°/m
  • Voltage Rating
    Voltage Rating 1.8/3kV
  • Minimum Bending Radius
    Minimum Bending Radius 6 x overall diameter
  • Flame Retardancy
    Flame Retardancy BS EN/IEC 60332-3
  • Temperature Limits
    Temperature Limits Temperature Range: -40°C to +125°C

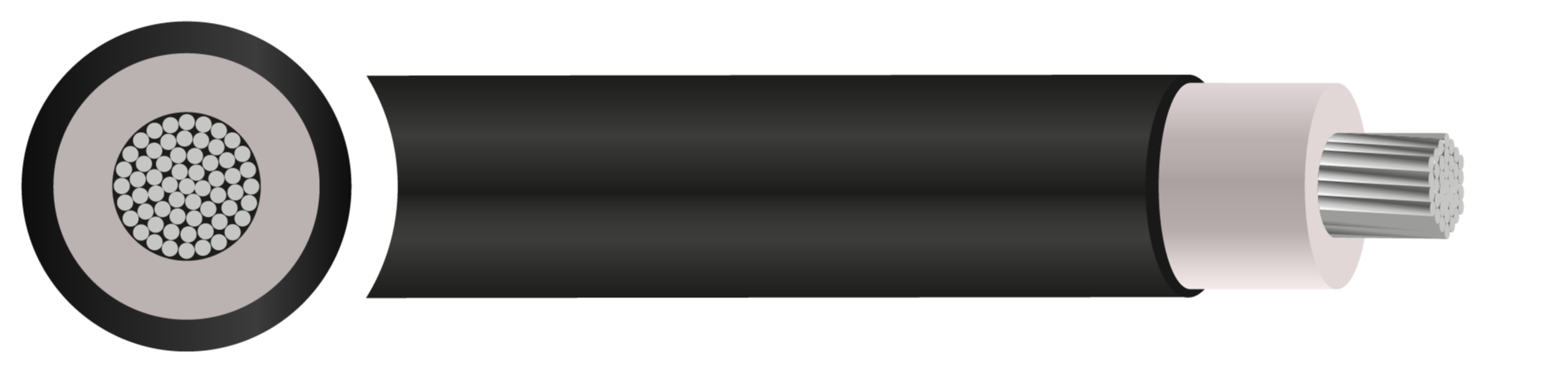

Construction
  • Conductor: Class 5/6 Flexible Stranded Tinned Copper
  • Insulation: Ethylene Propylene Rubber (EPR)
  • Outer Sheath: Halogen Free Cross-linked Ethylene-Vinyl Acetate (HF XL-EVA)
  • Sheath Colour: Black
Standards
  • IEC 60502
  • BS EN/IEC 60228
  • BS EN/IEC 61034
  • CSA C22.2
  • BS EN/IEC 60754
  • BS EN/IEC 60332-3
