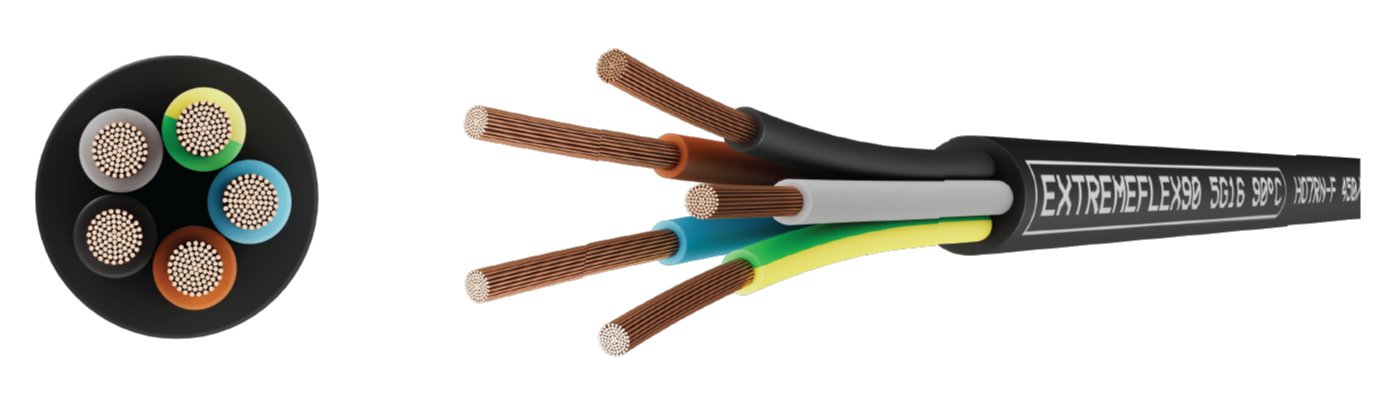

ExtremeFlex90 Flexible Mains & Control Cable - 1mm to 630mm

Description

Flexible 90°C EPR cable with high resistance to mechanical stress. Able to withstand water and weather. For use on Work sites, mobile power supplies, ports and harbours, water treatment plants, sewage and drains, hot and cold areas and harsh industrial environments.

For use in portable power supplies, site equipment, industrial machinery, and audio visual equipment. Can be cut to size for temporary power leads with a wide choice of terminals and connections.

Applications

  • Work sites
  • Mobile power supplies
  • Ports and harbours
  • Water treatment plants
  • Sewage and drainage systems
  • Hot and cold environments
  • Harsh industrial settings
  • Portable power supplies
  • Site equipment
  • Industrial machinery
  • Audiovisual equipment

Available sizes

From 1mm² to 630mm², in various core configurations and lengths.
It can be cut to standard 5m, 10m, 15m, 25m patch leads or any bespoke length fitted with a wide range of terminals.

Key Features
  • Voltage Rating
    Voltage Rating 450/750 Volts - Flexing

    0.6kV - 1kV Fixed

  • Minimum Bending Radius
    Minimum Bending Radius (More than 12mm²): 4 X Overall Diameter
  • Minimum Bending Radius
    Minimum Bending Radius (Less than 12mm²): 3 X Overall Diameter
  • Water Resistance
    Water Resistance AD8
  • Flame Retardancy
    Flame Retardancy BS EN 60332-1-2
  • Temperature Limits
    Temperature Limits Ambient Temperature: -40 to 90°C
Construction
  • Conductor: Class 5 flexible stranded copper conductor to BS EN 60228
  • Insulation: Ethylene Propylene Rubber (EPR) to BS 50363
  • Outer Sheath: CPE Rubber Compound To BS EN 50363
  • Sheath Colour: Black
Standards
  • BS EN 50363
  • 60811-2-1
  • BS EN 50525-3-21
  • BS EN 60332-1-2
  • IEC 60228
  • Conforms to H07RN-F
  • Wiring Regulations reference : IPX8

Core Colours

Single Core: White bonded to Black sheath
2 Core: Brown Blue
3 Core: Brown Blue Green Yellow
4 Core: Brown Black Blue, Green Yellow
5 Core: Brown Black Grey Blue Green Yellow
6+ Core: Black with White Numbers plus Green Yellow
