NA2X2Y Cable 0.6/1kV IEC 60502-1 AL/XLPE/MDPE - 16mm² to 1000mm²

Description

NA2X2Y are Low voltage Aluminium,  XLPE insulation and MDPE / HDPE sheathed power cables for distribution networks. This cable is used extensively in the renewables and datacentre sectors. NA2X2Y cable is suitable for external installation. Cables can be fixed on cable trays, within conduits or fixed to walls and is suitable for burial in ducts. The MDPE sheath is UV Resistant and water resistant to AD7.

Key Features

•
  Voltage Rating 600V-1000V AC
  1.8kV DC
•
  Minimum Bending Radius Single Core 15 x Overall Diameter
  Multicore 12 x Overall Diameter
•
  Temperature Limits Maximum operating temperature of conductor: +90°C
  Maximum short-circuit temperature up to 5 sec: +250°C

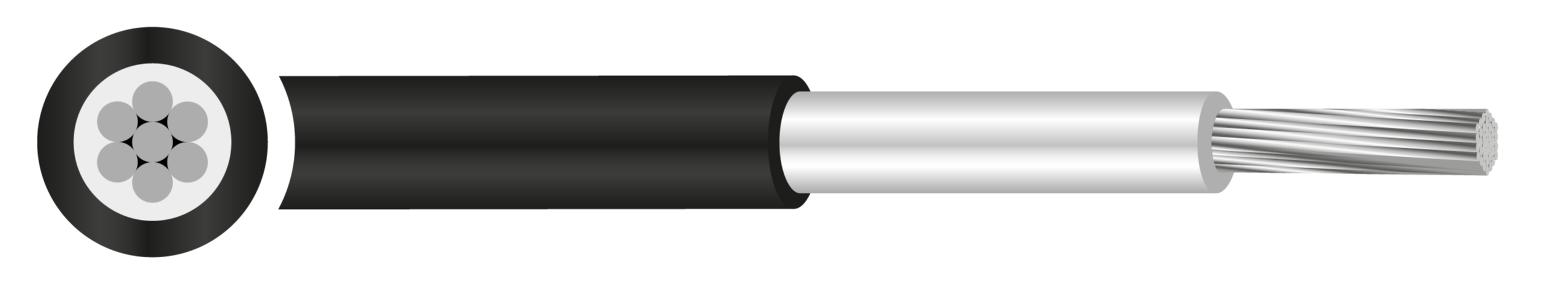

Construction

• Conductor: Class 2 Stranded Aluminium
• Insulation: Cross Linked polyethylene (XLPE)
• Outer Sheath: Medium Density Polyethylene (MDPE)
• Sheath Colour: Black

Standards

• IEC 60502-1
• IEC 60228
• IEC/EN 60754-1/2
• UV Resistant: ISO 4892-2
