NA2XH Cable IEC 60502-1 AL-XLPE-LSZH 0.6/1kV 25mm² to 800mm²

NA2XH Cable IEC 60502-1 AL-XLPE-LSZH 0.6/1kV 25mm² to 800mm²

Description

NA2XH aluminium cables are widely used European power and auxiliary cables used for electricity supply of electrical power with a voltage rating of 600/1000V AC and 900/1800V DC. Cables can be fixed on cable trays, within conduits or fixed to walls.

Key Features
  • Voltage Rating
    Voltage Rating AC: 0.6/1 (1.2)kV
    DC: 0.9/1.8kV
  • Minimum Bending Radius
    Minimum Bending Radius Single Core 15 x Overall Diameter
    Multicore 12 x Overall Diameter
  • Flame Retardancy
    Flame Retardancy BS EN/IEC 60332-1-2
    BS EN/IEC 60332-3-24
  • Temperature Limits
    Temperature Limits Temperature Range: -40°C to +90°C

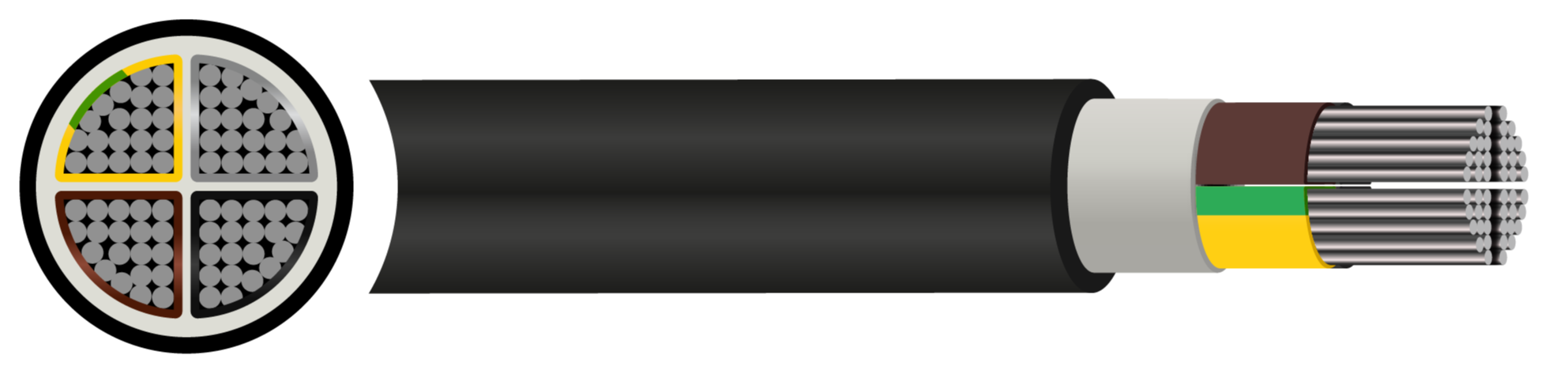

Construction
  • Conductor: Class 1 solid or class 2 stranded aluminium sector shaped conductor
  • Insulation: Cross Linked polyethylene (XLPE)
  • Outer Sheath: Low Smoke Zero Halogen (LSZH)
  • Sheath Colour: Black
Standards
  • BS EN/IEC 60228
  • IEC 60502-1
  • BS EN/IEC 60332-1-2
  • BS EN/IEC 60332-3-24
  • Gen to VDE 0276 Part 604
  • BS EN/IEC 61034-1/2
  • BS EN/IEC 60754-1/2

Core Colours

1 Core - Green Yellow or Black

2 Core - Blue Brown

3 core - Blue Brown Green Yellow

4 core - Brown Black Grey Green Yellow

5 core - Blue Brown Black Grey Green Yellow

7 and more - Black with White numbers plus Green Yellow
