NA2XS2Y 12/20 (24)kV Cable - 50mm² to 630mm²

Description

Medium voltage power cables with aluminium Conductor for distribution networks. This cable is used extensively in the renewables and datacentre sectors. NA2XS2Y cable is suitable for external installation. Cables can be fixed on cable trays, within conduits or fixed to walls and is suitable for burial in ducts. The cable has a UV Resistant outer sheath.

Key Features

•
  Voltage Rating 12/20 (24kV)
•
  Minimum Bending Radius 15 x Overall Diameter
•
  Flame Retardancy BS EN/IEC 60332-1-2
•
  Temperature Limits Temperature Range: -20°C to +60°C
  Conductor Operating Temperature: +90°C
  Short Circuit Temperature up to 5 sec: 250°C

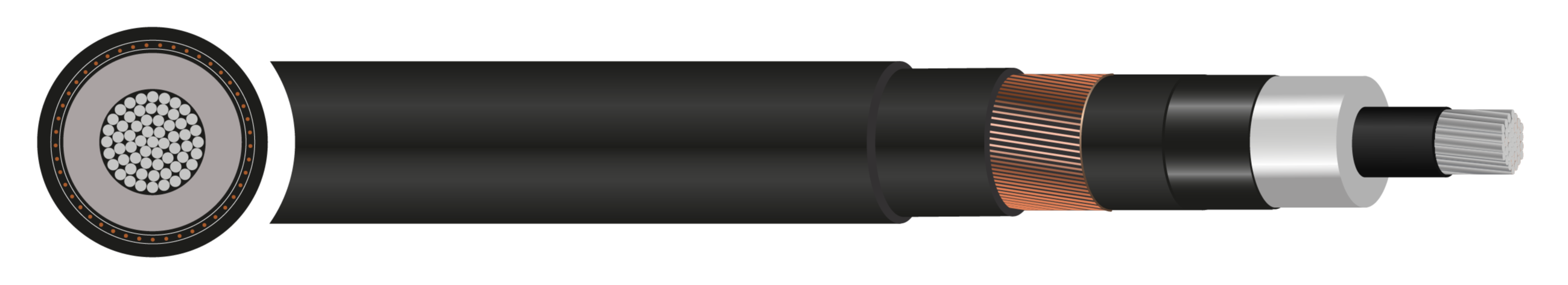

Construction

• Conductor: Class 2 Stranded Aluminium
• Conductor Screen: Semi-Conductive material
• Insulation: Cross Linked polyethylene (XLPE)
• Insulation Screen: Semi-conductive material (bonded)
• Screen: Copper wires and copper tape
• Outer Sheath: Medium Density Polyethylene (MDPE)
• Sheath Colour: Red or Black

Standards

• IEC 60502-2
• IEC 60228
• UV Resistant: ISO 4892-3
• BS EN/IEC 60332-1-2
