NA2XSEH 12/20 (24)kV Cable

Description

Three core Medium voltage power cables with aluminium Conductor for distribution networks. This cable is used extensively in the renewables and datacentre sectors. NA2XSEH cable is suitable for internal or external installation. Cables can be fixed on cable trays, within conduits or fixed to walls and is suitable for burial in ducts. The cable has a Low smoke zero halogen UV Resistant outer sheath.

Key Features

•
  Voltage Rating 12/20 (24kV)
•
  Minimum Bending Radius 15 x Overall Diameter
•
  UV/Ozone Resistance Yes
•
  Flame Retardancy BS EN/IEC 60332-1-2
•
  Temperature Limits Maximum operating temperature of conductor: +90°C

  Maximum short-circuit temperature up to 5 sec: +250°C

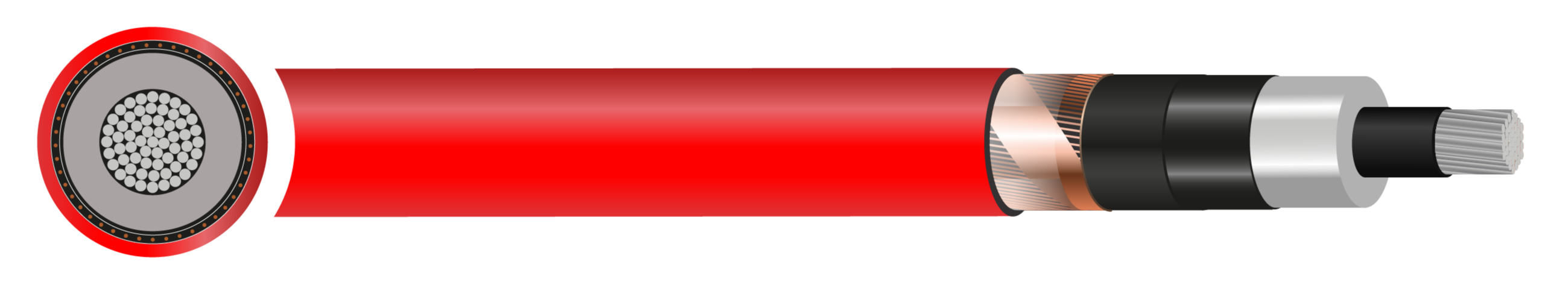

Construction

• Conductor: Class 2 Stranded Aluminium Conductor
• Conductor Screen: Semi-Conductive material
• Insulation: Cross Linked polyethylene (XLPE)
• Insulation Screen: Semi conducting compound
• Filler: LSZH (Low Smoke Zero Halogen)
• Metallic Screen: Copper Wires plus Copper tape
• Outer Sheath: Low Smoke Zero Halogen (LSZH)
• Sheath Colour: Red

Standards

• BS EN/IEC 60332-1-2
• IEC/EN 61034-1/2,
• IEC 60228
• IEC 60502-2
