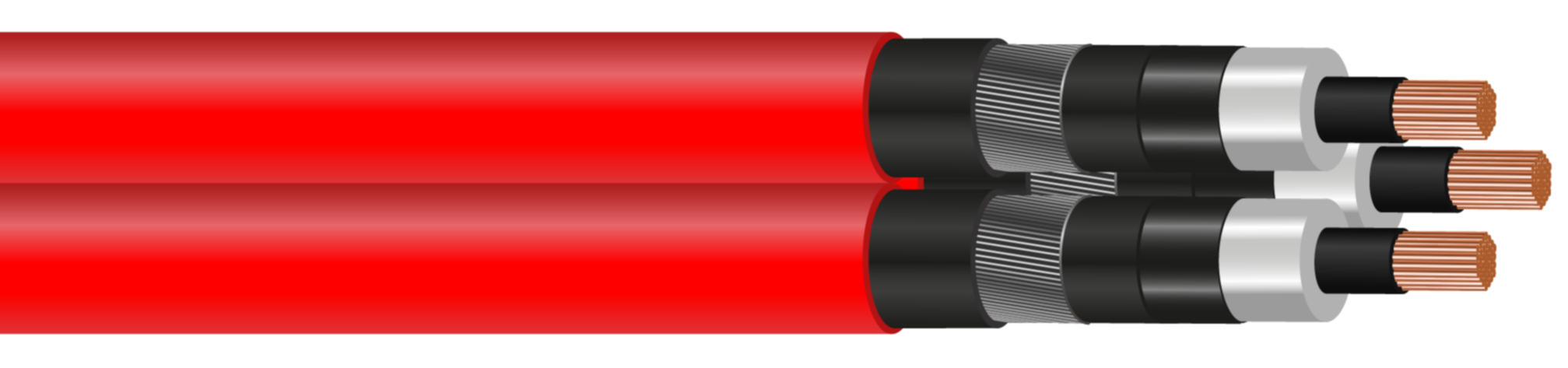

National Grid Approved Copper Triplex Cable (NGED) - 11kV, XLPE, MDPE - 185mm² to 300mm²

Description

NGED approved medium voltage copper power cable for connections from electrical grid to sub-main developments. Suitable for power networks, underground, outdoors and installation in cable ducting

Key Features

•
  Voltage Rating 6.35kV / 11kV (11kV)
•
  Minimum Bending Radius 15 x Overall Diameter
•
  Temperature Limits Temperature Range: 0°C to +90°C

Construction

• Conductor: Class 2 Copper Conductor
• Conductor Screen: Semi-Conductive material
• Insulation: Cross Linked polyethylene (XLPE)
• Insulation Screen: Semi conducting compound
• Water Blocking: Semi-Conductive Water Blocking Tape
• Metallic Screen: Aluminium Wires
• Water Blocking: Non Conductive Water Blocking Tape
• Outer Sheath: Polyethylene (PE)
• Sheath Colour: Red

Standards

• IEC 60502-02
• DNO Cable approved for NGED use

Core Colours
