S-3GSHXOEU HFFR 1kV Turbine Cable

S-3GSHXOEU HFFR 1kV Turbine Cable

Description

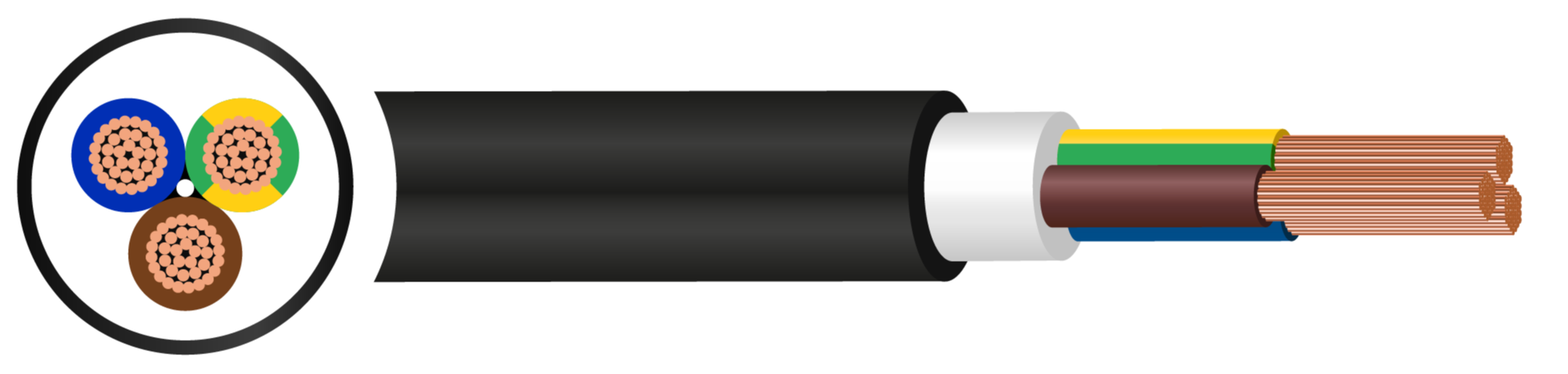

S-3GSHXOEU is a halogen free / fire resistant (HFFR) multi core copper cable with rubber insulation which is extensively used in the renewable energy sector in wind turbines. The cable is manufactured to withstand medium mechanical stress.  The EVA outer sheath provides oil and chemical resistance, is UV resistant and has excellent flexibility.  The high resistance to ozone and weathering and robust mechanical and chemical protection to the inner conductors make it ideal for outdoor use in wind turbines and other harsh environmental applications.

Key Features
  • Voltage Rating
    Voltage Rating 600/1000 Volts
  • Minimum Bending Radius
    Minimum Bending Radius Fixed: 4 x overall diameter
    Flexing: 6 x overall diameter
  • Flame Retardancy
    Flame Retardancy BS EN/IEC 60332-1
  • Temperature Limits
    Temperature Limits Temperature Range: -40°C to +90°C
Construction
  • Conductor: Class 5 flexible, stranded copper
  • Insulation: Rubber Compound
  • Outer Sheath: Ethylene-Vinyl Acetate (EVA)
  • Sheath Colour: Black
Standards
  • UL-758
  • BS EN/IEC 60332-1
  • BS EN/IEC 60228
  • BS EN/IEC 61034
  • BS EN/IEC 60754
  • DIN VDE 0250
  • DIN VDE 0282
