Torsion Resistant Loop Screened LSZH 1kV Turbine Cable

Torsion Resistant Loop Screened LSZH 1kV Turbine Cable

Description

LSZH power cable. Specifically designed for wind turbines, for transmitting power between turbine generator and the  transformer at the base of the tower. The cable is manufactured to meet the torsional stresses associated with wind turbines. The HF_EVA sheath is Oil, UV, Ozone resistant.

Key Features
  • Torsion Resistance
    Torsion Resistance ±100°/m
  • Voltage Rating
    Voltage Rating 600/1000 Volts
  • Minimum Bending Radius
    Minimum Bending Radius Fixed: 4 x overall diameter
    Flexing: 6 x overall diameter
  • Flame Retardancy
    Flame Retardancy BS EN/IEC 60332-1
  • Temperature Limits
    Temperature Limits Temperature Range: -40°C to +90°C

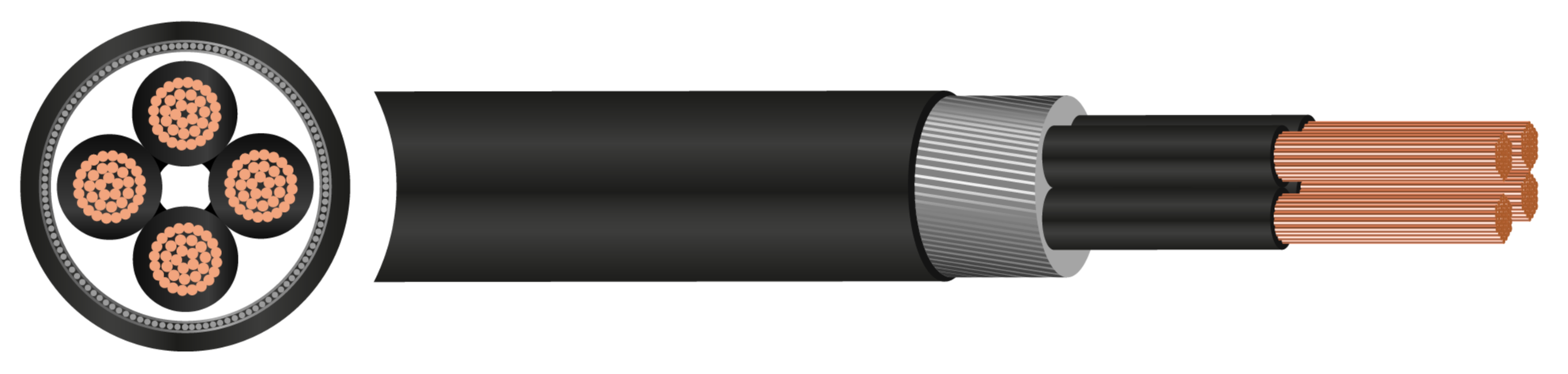

Construction
  • Conductor: Class 5 flexible, stranded copper
  • Insulation: Ethylene Propylene Rubber (EPR)
  • Armour: Tinned copper wire braid (TCWB)
  • Outer Sheath: Halogen Free Ethylene-Vinyl Acetate (HF-EVA)
  • Sheath Colour: Black
Standards
  • IEC 60502-1
  • BS EN/IEC 60332-1
  • BS EN/IEC 60228
  • BS EN/IEC 61034
  • BS EN 50363
  • BS EN/IEC 60754
