Torsion Resistant LSZH 1kV Turbine Power Cable

Torsion Resistant LSZH 1kV Turbine Power Cable

Description

This is a 0.6-1kV multicore LSZH power cable. Specifically designed for wind turbines, for transmitting power between turbine generator and the  transformer at the base of the tower. The cable is manufactured to meet the torsional stresses associated with wind turbines. The outer sheath is cross linked EVA and has excellent resistance to UV, Oils  and ozone.

Key Features
  • Torsion Resistance
    Torsion Resistance ±144°/m
  • Voltage Rating
    Voltage Rating 600/1000 Volts
  • Minimum Bending Radius
    Minimum Bending Radius 6 x overall diameter
  • Flame Retardancy
    Flame Retardancy BS EN/IEC 60332-1
    BS EN/IEC 60332-3
  • Temperature Limits
    Temperature Limits Temperature Range: -40°C to +90°C

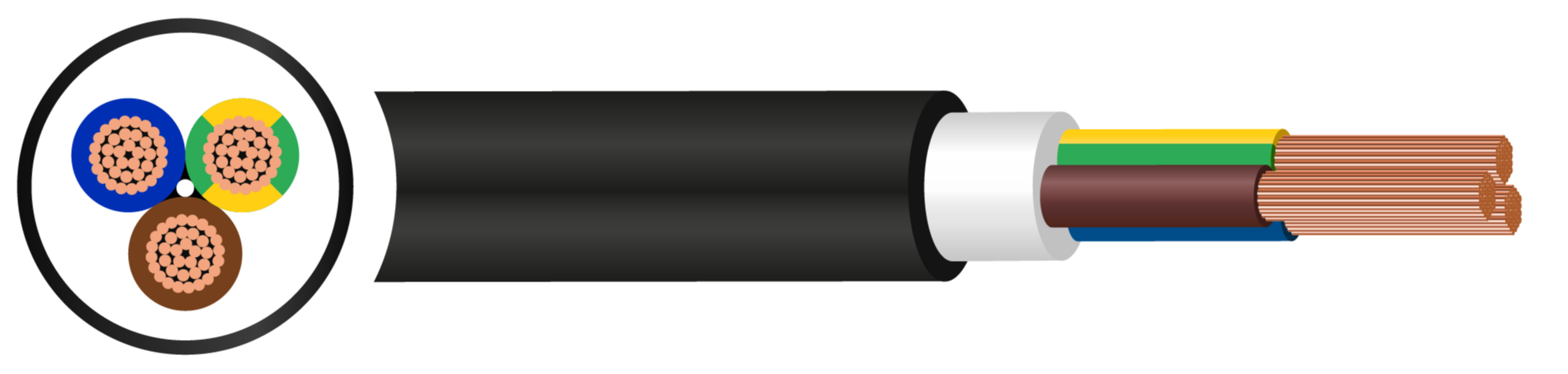

Construction
  • Conductor: Class 5/6 Flexible Stranded Tinned Copper
  • Insulation: Ethylene Propylene Rubber (EPR)
  • Outer Sheath: Halogen Free Cross-linked Ethylene-Vinyl Acetate (HF XL-EVA)
  • Sheath Colour: Black
Standards
  • IEC 60502-1
  • BS EN/IEC 60332-1
  • BS EN/IEC 60228
  • BS EN/IEC 61034
  • BS EN/IEC 60754
  • BS EN/IEC 60332-3
