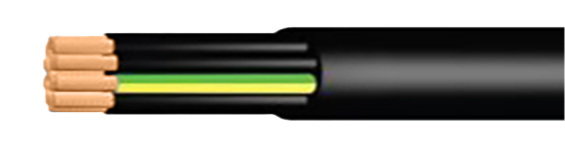

318*TQ Flexible Mains and Control Cable - EPR, CSP - 0.75mm to 2.5mm
Download
Datasheet 318*TQ Flexible Mains and Control Cable - EPR, CSP - 0.75mm to 2.5mm
Last modified 26/07/2021 11:07:21
Datasheet 318*TQ Flexible Mains and Control Cable - EPR, CSP - 0.75mm to 2.5mm
Last modified 26/07/2021 11:07:21
Overview
Our range of flexible TQ cables is designed for fixed wiring installations. It is a range of unarmoured cable designed to prevent the risk of electric shock in the event of fault or surge. Our TQ cable is suitable as a flexible marine cable, both on and offshore. This range of 300/750V (refer to core size in Characteristics) is heat and oil resistant, and flame retardant (HOFR).
Datasheet must be used in conjunction with 18th edition IET wiring regulations.
STANDARDS
- BS EN 50525-2.21
- BS EN 60332-1-2
CONSTRUCTION
Conductor: Flexible tinned annealed or plain copper conductor
Insulation: EPR (Ethylene Propylene Rubber)
Sheath: CSP (chlorosulphonated polyethylene)
Harmonised Code: H07BN4-F
CHARACTERISTICS
300/500V: 75mm2 – 2.5mm2
450/750V: 4mm2 – 630mm2
Temperature Limits: Fixed: -25°C to +90°C
Minimum Bending Radius: As per cable manufacturer datasheet
Should not be installed at temperatures below -25°C
For more information please consult a member of the Cleveland Cable Sales Team
Core IDs
2 core
Blue Brown
3 core
Blue Brown GreenYellow
4 core
Brown Black Grey GreenYellow
5 core
Blue Brown Black Grey GreenYellow
6 core and above
Black with White numbers plus GreenYellow
Products
| Code | Description | Qty / Metres | |
|---|---|---|---|
| 3182TQ/75 | 2X0.75 EPR CSP FLEX BS-EN 50525-2-21 BLACK 3182TQ R100 | ||
| 3182TQ/75 | 2X0.75 EPR CSP FLEX BS-EN 50525-2-21 WHITE 3182TQ R100 | ||
| 3183TQ/75 | 3X0.75 EPR CSP FLEX BS-EN 50525-2-21 WHITE 3183TQ R100 | ||
| 3184TQ/75 | 4X0.75 EPR,CSP FLEX BS-EN 50525-2-21 WHITE 3184TQ R100 | ||
| 3182TQ1 | 2X1 EPR CSP FLEX BS-EN 50525-2-21 WHITE 3182TQ R100 | ||
| 3182TQ1 | 2X1 EPR CSP FLEX BS-EN 50525-2-21 BLACK 3182TQ R100 | ||
| 3182TQ1 | 2X1 EPR CSP FLEX BS-EN 50525-2-21 YELLOW 3182TQ R100 | ||
| 3183TQ1 | 3X1 EPR,CSP FLEX BS-EN 50525-2-21 WHITE 3183TQ R100 | ||
| 3183TQ1 | 3X1 EPR CSP FLEX BS-EN 50525-2-21 BLACK 3183TQ R100 | ||
| 3183TQ1 | 3X1 EPR,CSP FLEX BS-EN 50525-2-21 YELLOW 3183TQ | ||
| 3184TQ1 | 4X1 EPR,CSP FLEX BS-EN 50525-2-21 BLACK 3184TQ R100 | ||
| 3184TQ1 | 4X1 EPR,CSP FLEX BS-EN 50525-2-21 WHITE 3184TQ R100 | ||
| 3181TQ1/5 | 1X1.5 EPR,CSP FLEX BS-EN 50525-2-21 BLACK 3181TQ | ||
| 3182TQ1/5 | 2X1.5 EPR CSP FLEX BS-EN 50525-2-21 BLACK 3182TQ R100 | ||
| 3182TQ1/5 | 2X1.5 EPR CSP FLEX BS-EN 50525-2-21 WHITE 3182TQ R100 | ||
| 3183TQ1/5 | 3X1.5 EPR,CSP FLEX BS-EN 50525-2-21 BLACK 3183TQ R100 | ||
| 3183TQ1/5 | 3X1.5 EPR,CSP FLEX BS-EN 50525-2-21 WHITE 3183TQ R100 | ||
| 3183TQ1/5 | 3X1.5 EPR CSP FLEX BS-EN 50525-2-21 YELLOW 3183TQ | ||
| 3184TQ1/5 | 4X1.5 EPR,CSP FLEX BS-EN 50525-2-21 BLACK 3184TQ R100 | ||
| 3184TQ1/5 | 4X1.5 EPR,CSP FLEX BS-EN 50525-2-21 WHITE 3184TQ R100 | ||
| 3185TQ1/5 | 5X1.5 EPR,CSP FLEX BS-EN 50525-2-21 BLACK 3185TQ | ||
| 3186TQ1/5 | 6X1.5 EPR,CSP FLEX BS-EN 50525-2-21 BLACK 3186TQ | ||
| 3187TQ1/5 | 7X1.5 EPR,CSP FLEX BS-EN 50525-2-21 BLACK 3187TQ | ||
| 3180/12TQ1/5 | 12X1.5 EPR,CSP FLEX BS-EN 50525-2-21 BLACK 3180/12TQ | ||
| 3180/16TQ1/5 | 18X1.5 EPR,CSP FLEX BS-EN 50525-2-21 BLACK 3180/18TQ | ||
| 3180/20TQ1/5 | 19X1.5 EPR,CSP FLEX BS-EN 50525-2-21 BLACK 3180/19TQ | ||
| 3180/27TQ1/5 | 27X1.5 EPR,CSP FLEX BS-EN 50525-2-21 BLACK 3180/27TQ | ||
| 3180/37TQ1/5 | 24X1.5 EPR,CSP FLEX BS-EN 50525-2-21 BLACK 3180/24TQ | ||
| 3181TQ2/5 | 1X2.5 EPR,CSP FLEX BS-EN 50525-2-21 BLACK 3181TQ | ||
| 3182TQ2/5 | 2X2.5 EPR CSP FLEX BS-EN 50525-2-21 BLACK 3182TQ R100 | ||
| 3182TQ2/5 | 2X2.5 EPR CSP FLEX BS-EN 50525-2-21 WHITE 3182TQ R100 | ||
| 3183TQ2/5 | 3X2.5 EPR CSP FLEX BS-EN 50525-2-21 BLACK 3183TQ R100 | ||
| 3183TQ2/5 | 3X2.5 EPR,CSP FLEX BS-EN 50525-2-21 WHITE 3183TQ R100 | ||
| 3183TQ2/5 | 3X2.5 EPR,CSP FLEX BS-EN 50525-2-21 YELLOW 3183TQ | ||
| 3184TQ2/5 | 4X2.5 EPR,CSP FLEX BS-EN 50525-2-21 BLACK 3184TQ R100 | ||
| 3184TQ2/5 | 4X2.5 EPR,CSP FLEX BS-EN 50525-2-21 WHITE 3184TQ R100 | ||
| 3185TQ2/5 | 5X2.5 EPR,CSP FLEX BS-EN 50525-2-21 BLACK 3185TQ | ||
| 3187TQ2/5 | 7X2.5 EPR,CSP FLEX BS-EN 50525-2-21 BLACK 3187TQ | ||
| 3180/12TQ2/5 | 12X2.5 EPR,CSP FLEX BS-EN 50525-2-21 BLACK 3180/12TQ | ||
| 3180/16TQ2/5 | 16X2.5 EPR,CSP FLEX BS-EN 50525-2-21 BLACK 3180/16TQ | ||
| 3180/20TQ2/5 | 20X2.5 EPR,CSP FLEX BS-EN 50525-2-21 BLACK 3180/20TQ | ||
| 3180/27TQ2/5 | 27X2.5 EPR,CSP FLEX BS-EN 50525-2-21 BLACK 3180/27TQ | ||
| 3180/37TQ2/5 | 37X2.5 EPR,CSP FLEX BS-EN 50525-2-21 BLACK 3180/37TQ |
scroll table to see products
