PROFIBUS Communication Cable - BS EN/IEC 61158, PVC, LSZH - 7.9mm to 11.5mm

Overview

PROFIBUS is standardised to IEC 61158 giving more interoperability of components from different manufactures. PROFIBUS cables are especially made for process automation (PA). The modular peripheral construction (DP: decentralised periphery) of the bus system simplifies installation and maintenance. Also available with a galvanised copper wire braid for mechanical strength and resistance to interference.

Standards

• BS EN/IEC 61158
• BS EN 50170
• BS EN/IEC 60332-1
• BS EN/IEC 61034-2
• BS EN/IEC 60754-1

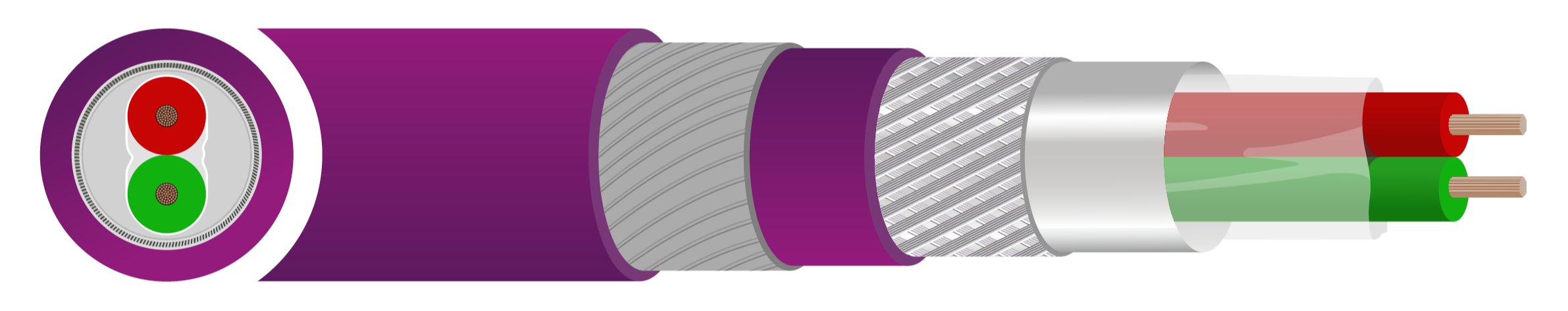

Construction

Conductor: Stranded copper conductor
Insulation: Polyethylene (PE)
Separator: Polyester Tape (PET)
Filler: Halogen free Compound
Screen: Aluminium foil polyester tape wrapped by a galvanised copper wire braid
Inner sheath: LSZH / PVC - refer to Products
Armour: Galvanised Copper Wire Braid, Steel Wire Armour only on PROFIBUSDPSWA
Outer Sheath: LSZH / PVC - refer to Products

Characteristics

Voltage Rating: 300V (communication cable – not for power applications)
Temperature Rating: Fixed: -40°C to +80°C
Minimum Bending Radius: As per cable manufacturer datasheet

Should not be installed at temperatures below 0°C

For more information please consult a member of the Cleveland Cable Sales Team
