BS7870 Single Core Service Cable 33kV - XLPE, MDPE - 70mm to 630mm

Description

Single core high voltage cable for Windfarms, Solar Parks and other Renewable applications. Suitable for power networks, underground, outdoors and installation in cable ducting.
Conforms to BS 7870-4.10

Key Features

•
  Installation Guidelines Should not be installed at temperatures below 0°C
•
  Voltage Rating Uo/U 19Kv / 33Kv, Maximum Voltage: 36kV
  Test Voltage: 75Kv, Partial Discharge: Level with Voltage 2Uo kV Max. 5Pc
•
  Minimum Bending Radius As Per Manufacturers Datasheet
•
  Temperature Limits Maximum conductor temp: 90°C

  Maximum operating temp: 130°C

  Short Circuit temp: 250°C

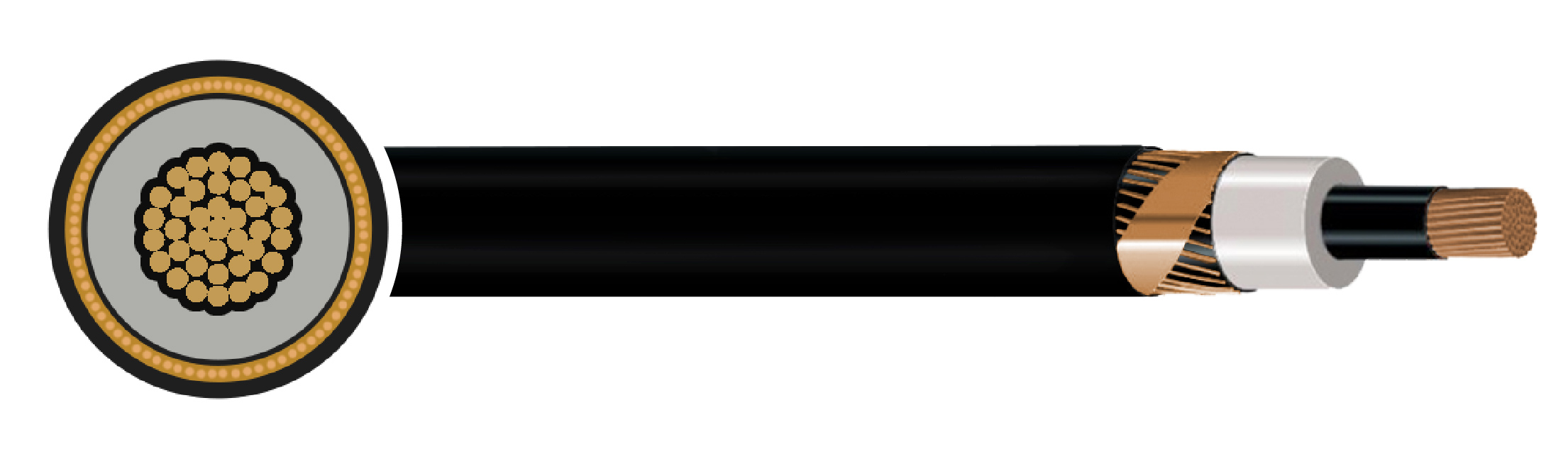

Construction

• Conductor: Stranded Copper Conductor
• Insulation: Cross Linked polyethylene (XLPE)
• Metallic Screen: Copper Wire Screen
• Sheath: Medium Density Polyethylene (MDPE)
• Separator: Copper Tape (O.H), Non-Conductive Water Blocking Tape
• Tape: Semi-Conductive Water Blocking Tape
• Sheath Colour: Black

Standards

• BS 7870-4.10
