XL-EVA LSZH 1kV Turbine Tower Cable

Description

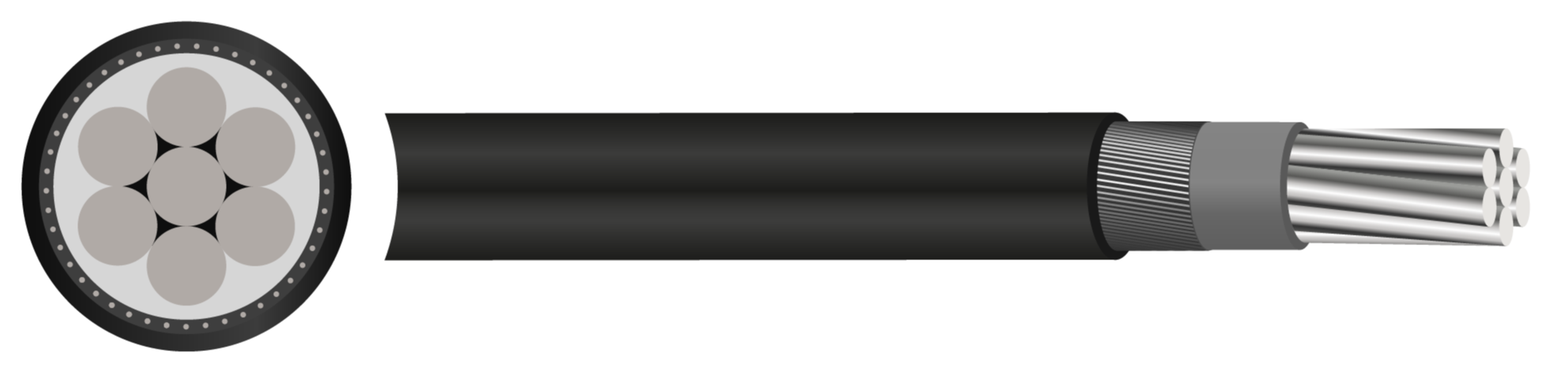

Single core lightweight aluminium conductor screened turbine power cable with zero halogen sheath. The cable is UV, ozone, water and oil resistant. it is used extensively within the renewables sector for installation inside turbine towers.

Key Features

•
  Voltage Rating 600/1000 Volts
•
  Minimum Bending Radius 6 x overall diameter
•
  Flame Retardancy BS EN/IEC 60332-1
  BS EN/IEC 60332-3
•
  Temperature Limits Temperature Range: -40°C to +90°C

Construction

• Conductor: Class 2 Stranded Aluminium Conductor
• Insulation: Ethylene Propylene Rubber (EPR)
• Metallic Screen: Tinned Copper Wire Braid (TCWB)
• Outer Sheath: Cross-linked Ethylene-Vinyl Acetate (XL-EVA)
• Sheath Colour: Black

Standards

• IEC 60502-1
• BS EN/IEC 60332-1
• BS EN/IEC 60228
• BS EN/IEC 61034
• BS EN/IEC 60754
• BS EN/IEC 60332-3
